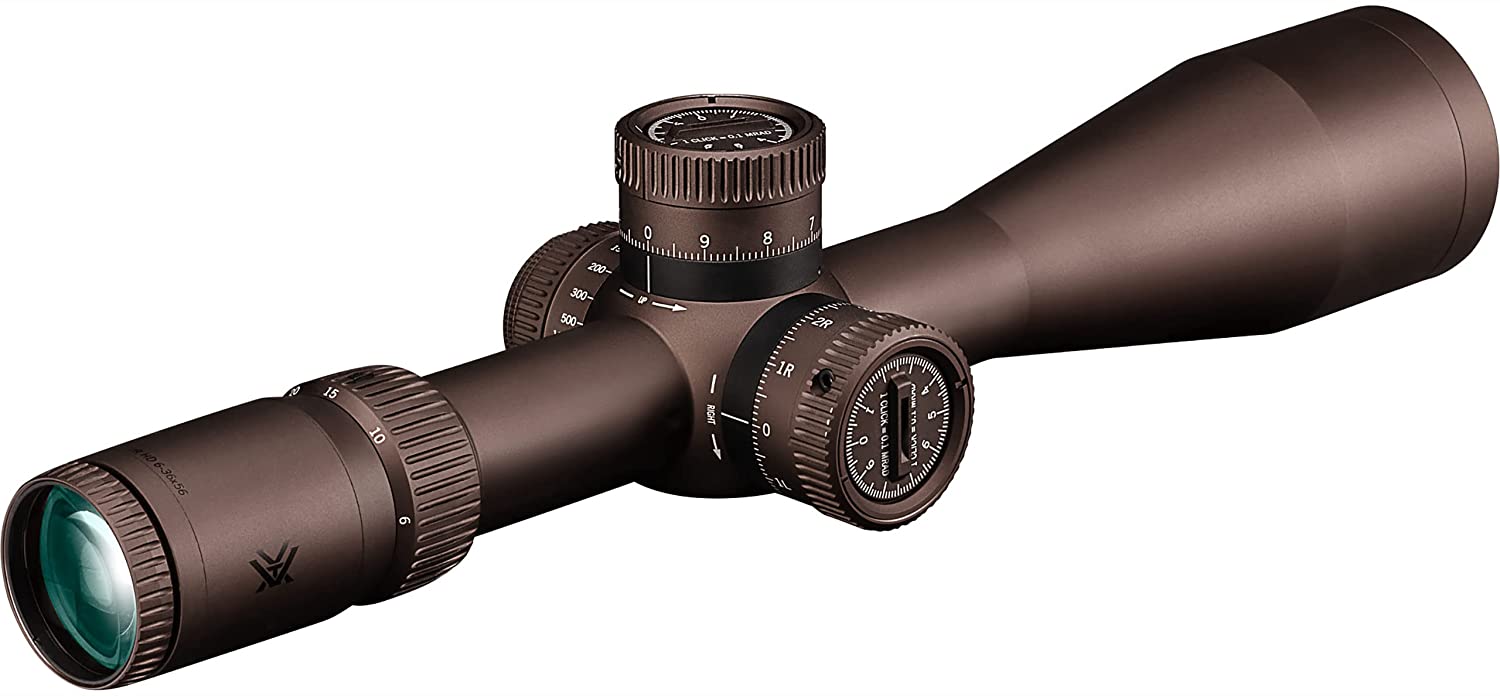

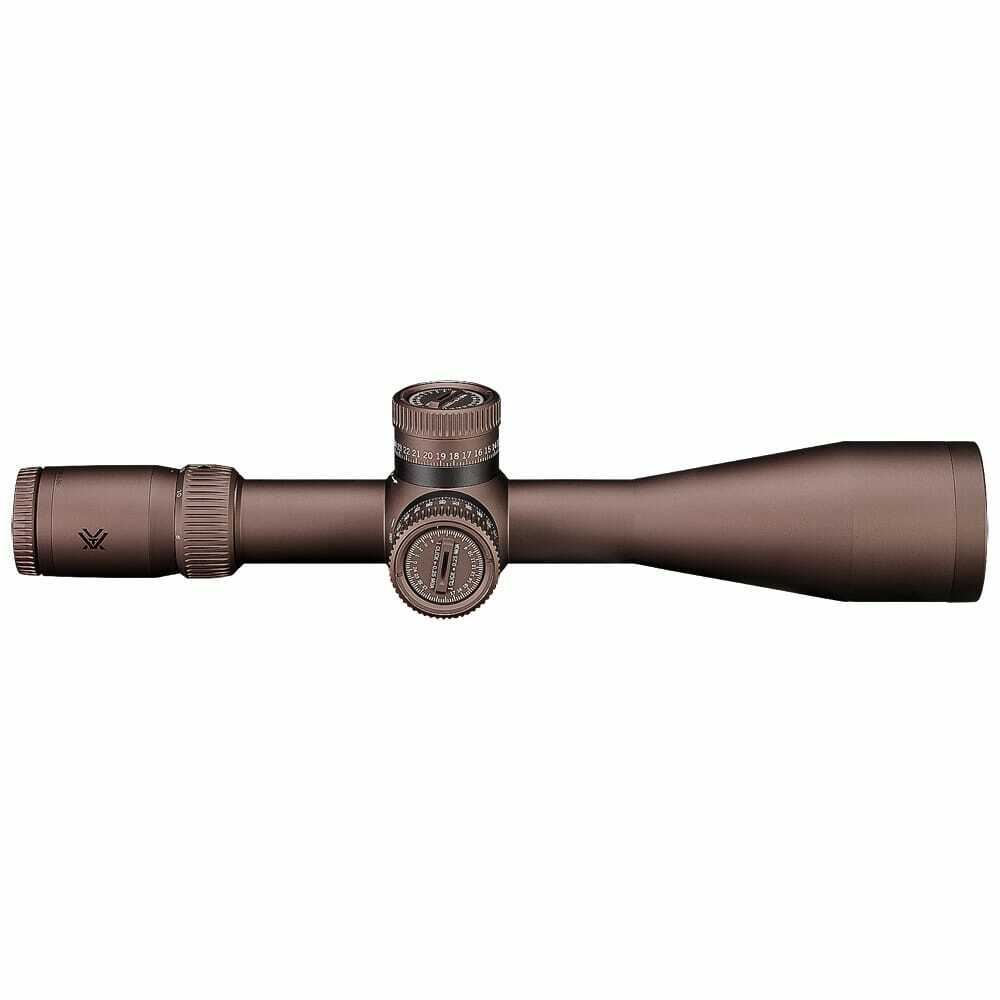

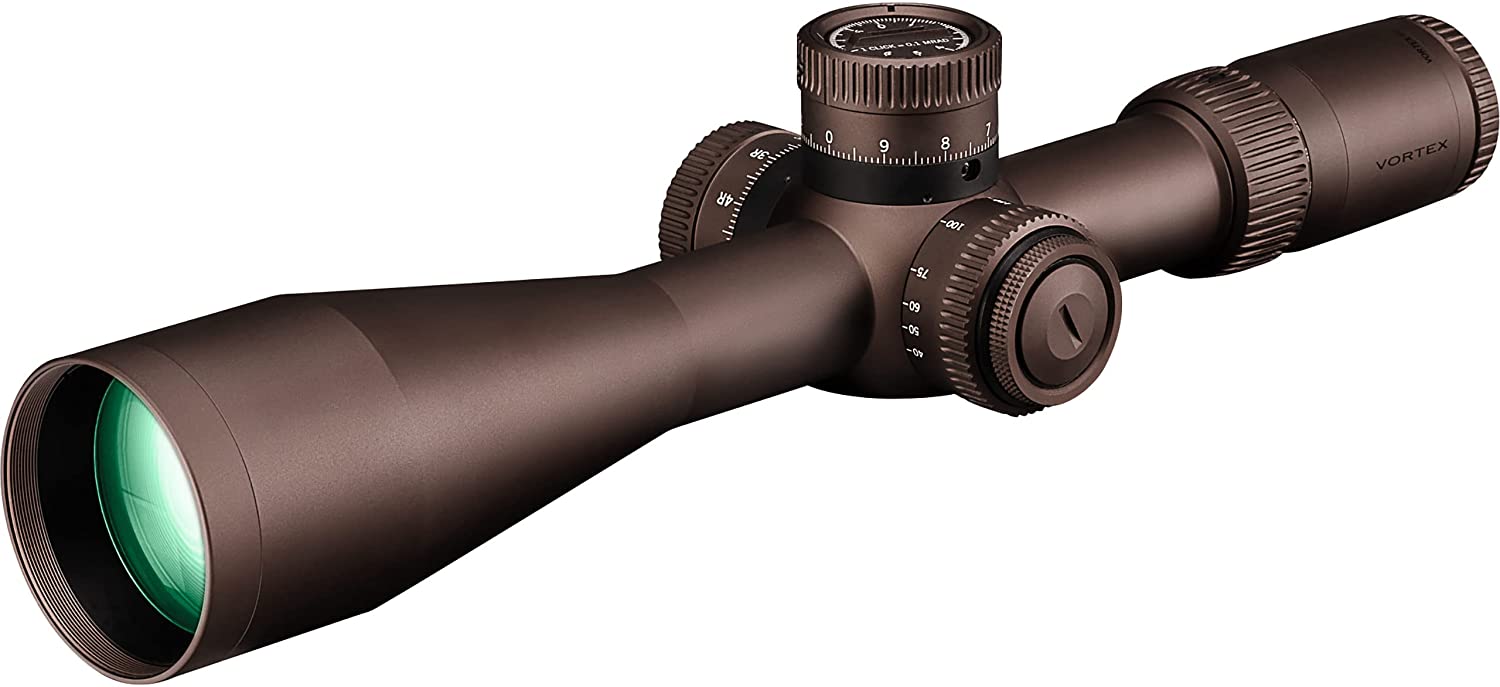

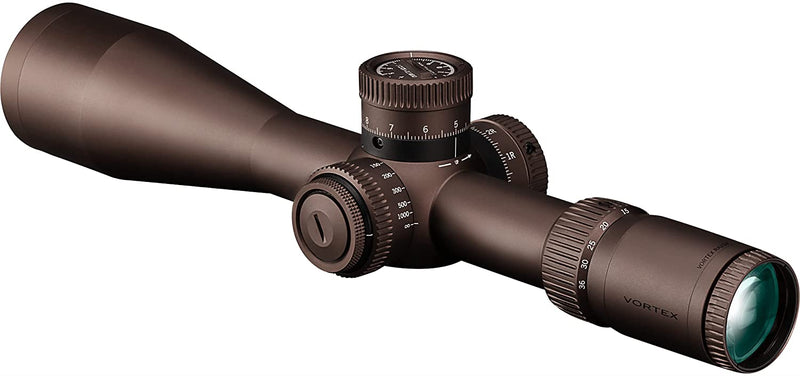

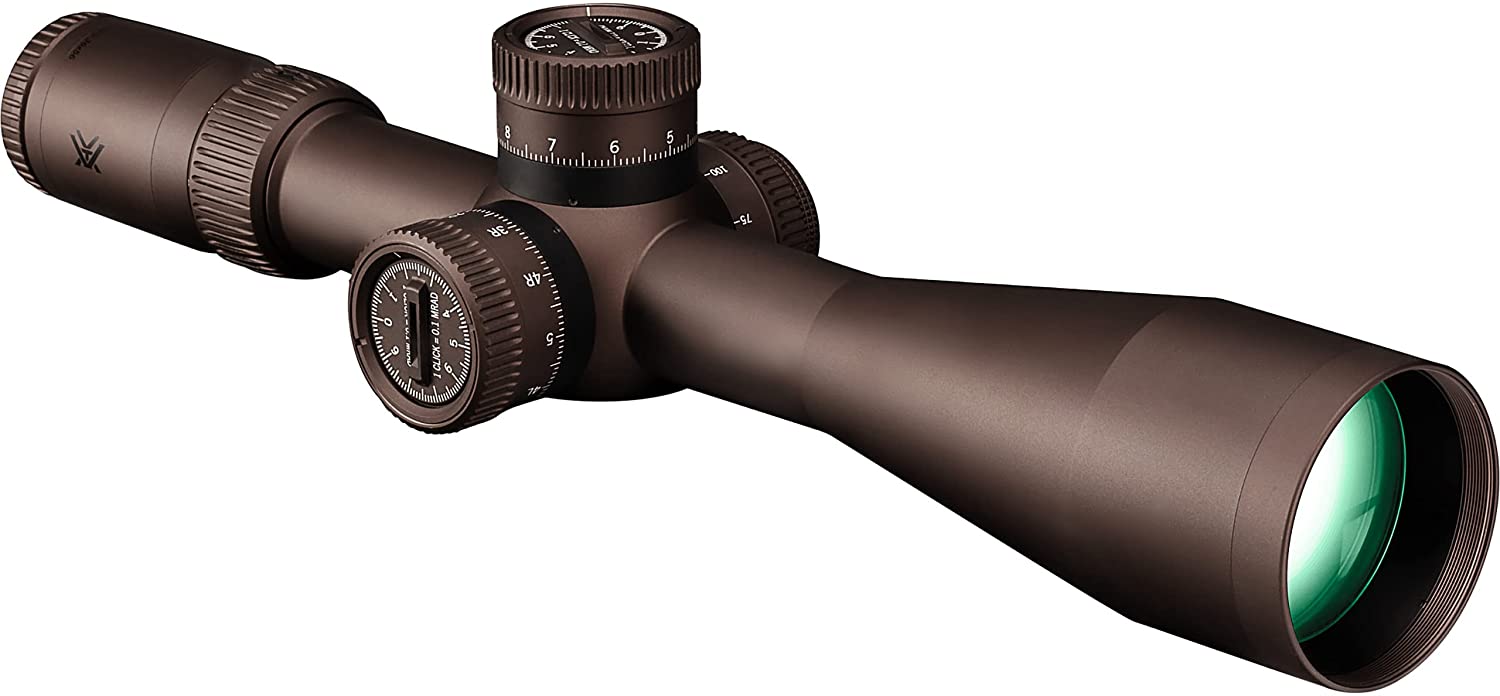

Built around the perfect balance of magnification and field of view, the Razor Gen III 6- 36x56 FFP delivers the resolution and contrast you need for long-range. To get the absolute most out of the first focal plane reticle, the EBR-7D presents a clean sight picture while still providing ample wind holds and ranging information. Round it out with a rugged build and you have the long-range, solution you’ve been waiting for.
- First Focal Plane Reticle
- L-Tec+ Zero System
- HD Optical System
- Micro Adjust Zero Setting
- External Rotation Indicator
- Fully Multi-Coated
- Optically Indexed Lenses
- Plasma Tech
- Glass-Etched Reticle
- Aircraft-Grade Aluminum
- Hard Anodized Stealth Shadow Finish
- Locking Side Illumination
Vortex Optics Razor HD Gen III 6-36x56 FFP EBR-7D (MRAD) Riflescope Specifications:
- Magnification 6-36x
- Objective Lens Diameter 56 mm
- Eye Relief 3.5 inches
- Field of View 20.5-3.5 ft @ 100 yds
- Tube Size 34 mm
- Turret Style Exposed Locking
- Adjustment Graduation .1 MRAD
- Travel Per Rotation 10 MRAD
- Max Elevation Adjustment 36.1 MRAD
- Max Windage Adjustment 15.5 MRAD
- Parallax Setting 10 yds to infinity
- Length 15.3 inches
- Weight 45.1 oz

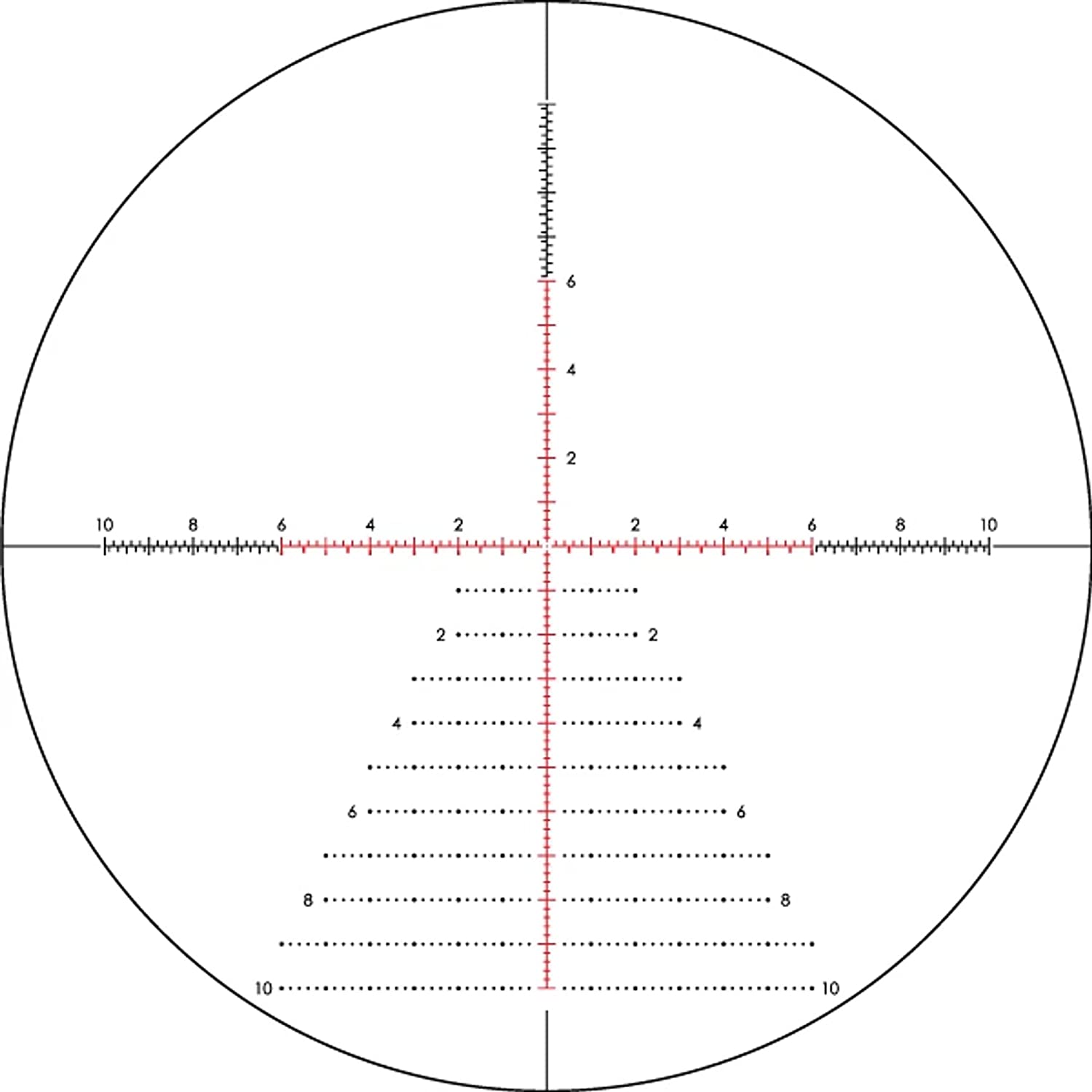

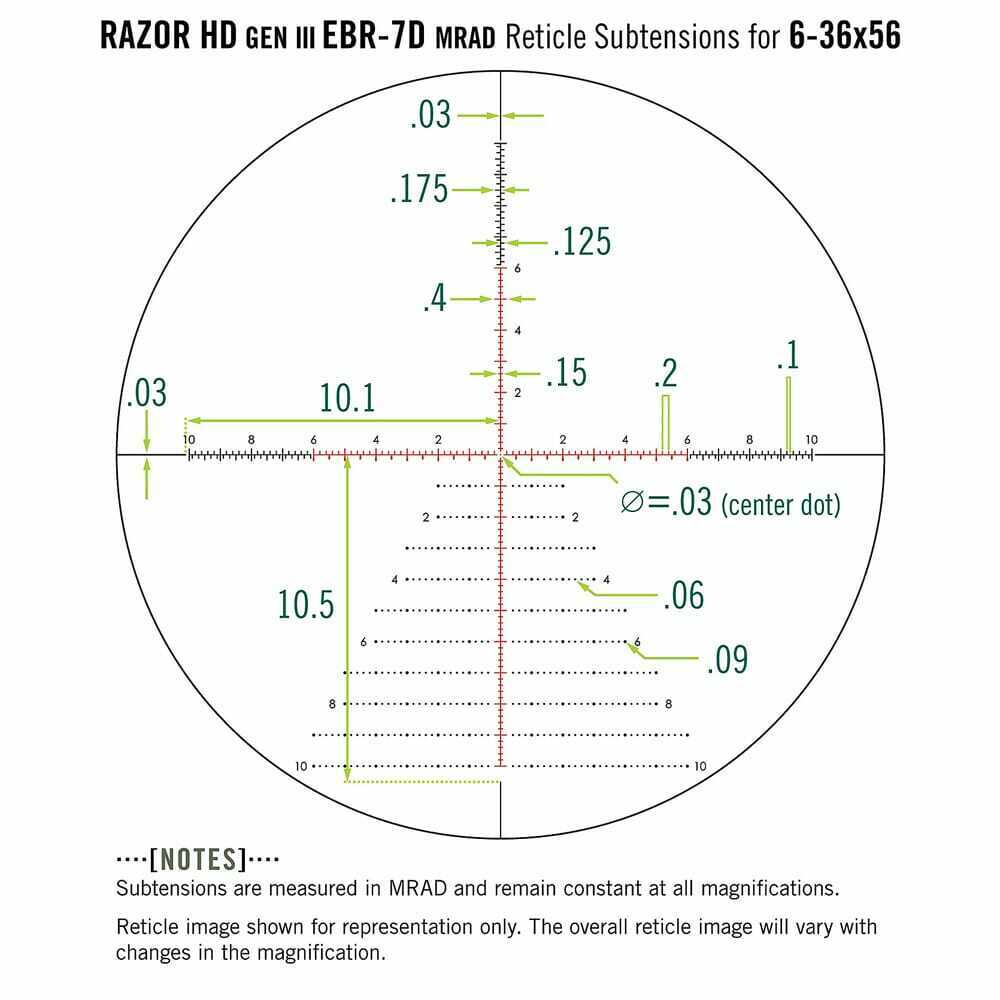

First Focal Plane Reticle
Scale of the EBR-7D reticle remains in proportion to the zoomed image. Constant subtensions allow for accurate holdovers and ranging at all magnifications while the EBR-7D reticle is useful for long-range shooting.
L-Tec+ Zero System
The L-Tec+ Zero System is easy to use with all captive parts and only one set screw, making zeroing quick and simple. Once set, it also allows for more travel.
HD Optical System
Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration and provide outstanding color fidelity, edge-to-edge sharpness and light transmission.
Micro Adjust Zero Setting
Infinite zero setting positions allow zero to be set between clicks for optimal accuracy.
External Rotation Indicator
Provides quick visual and tactile reference of elevation turret's rotational position.
Ultimate anti-reflective coatings on all air-to-glass surfaces provide maximum light transmission for peak clarity and the pinnacle of low-light performance.
Optically Indexed Lenses
Optimize image sharpness and brightness from edge to edge.
Cutting edge coating application process provides unparalleled coating durability and performance
Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability.
Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Hard Anodized Stealth Shadow Finish
Highly durable hard-coat anodization provides a low-glare matte surface.
Locking Side Illumination
Easily accessible and lockable illumination dial is located on the left side of turret housing. Features eleven intensity levels of illumination with off positions between each setting.
