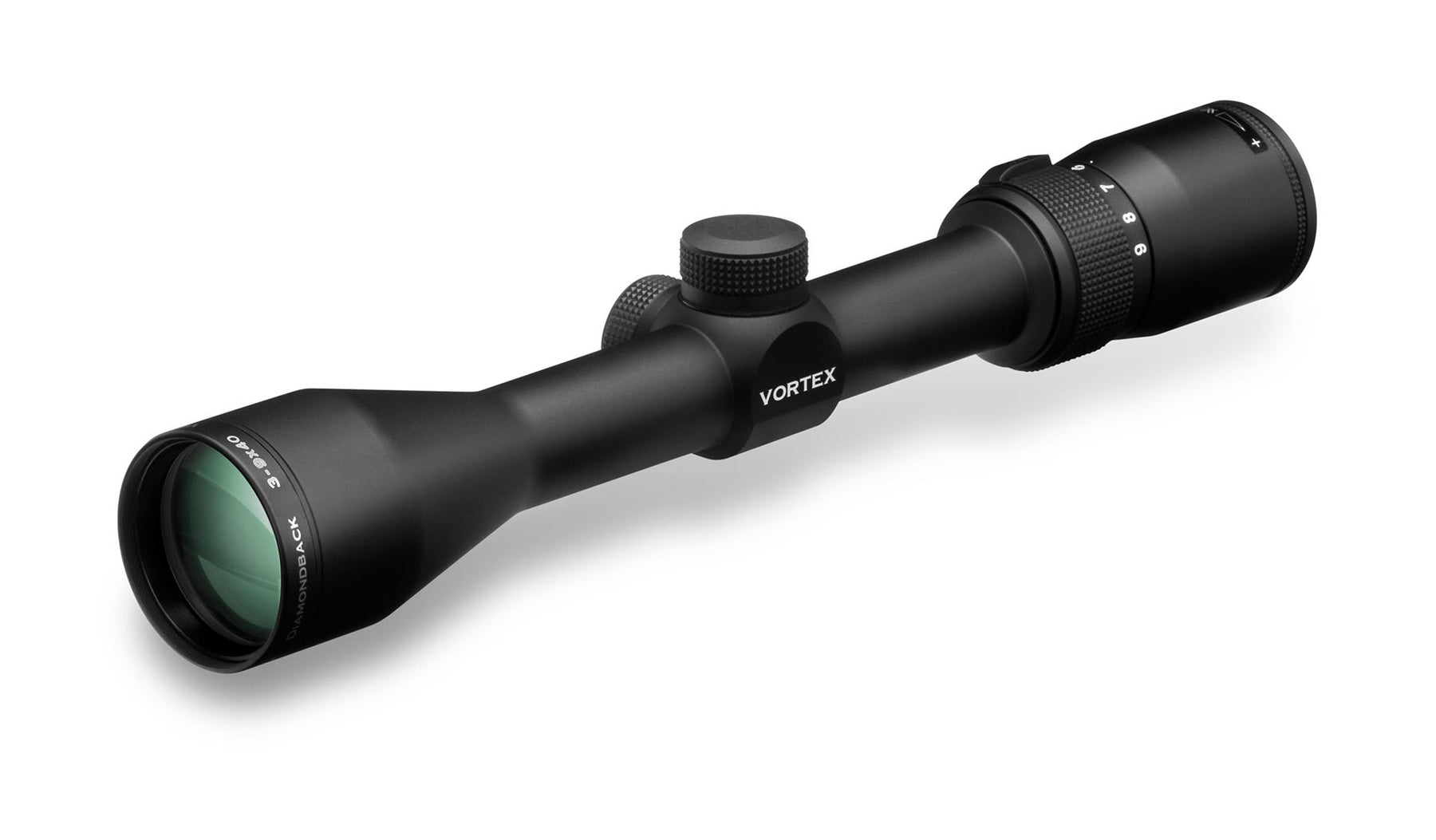

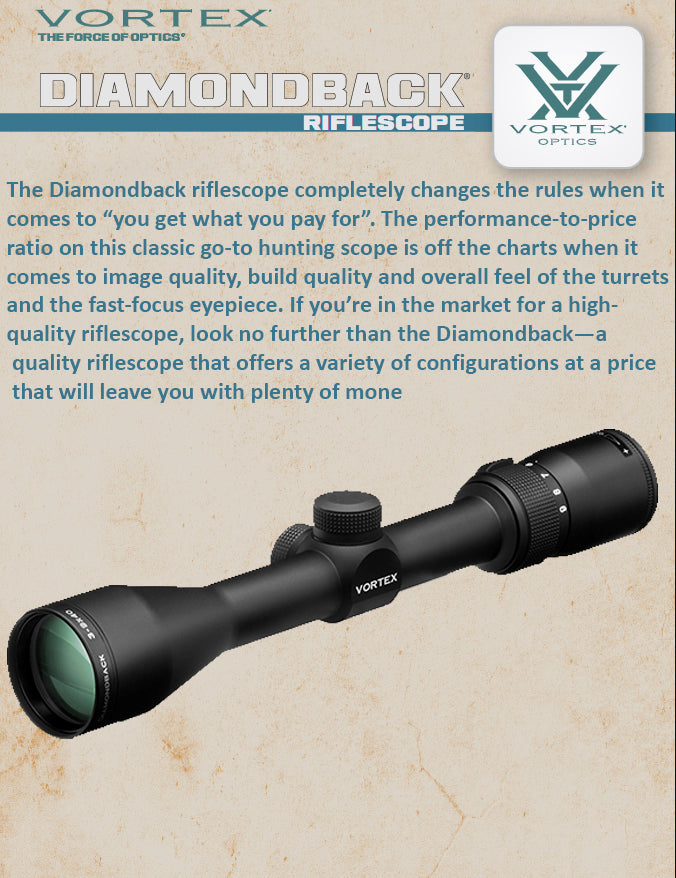

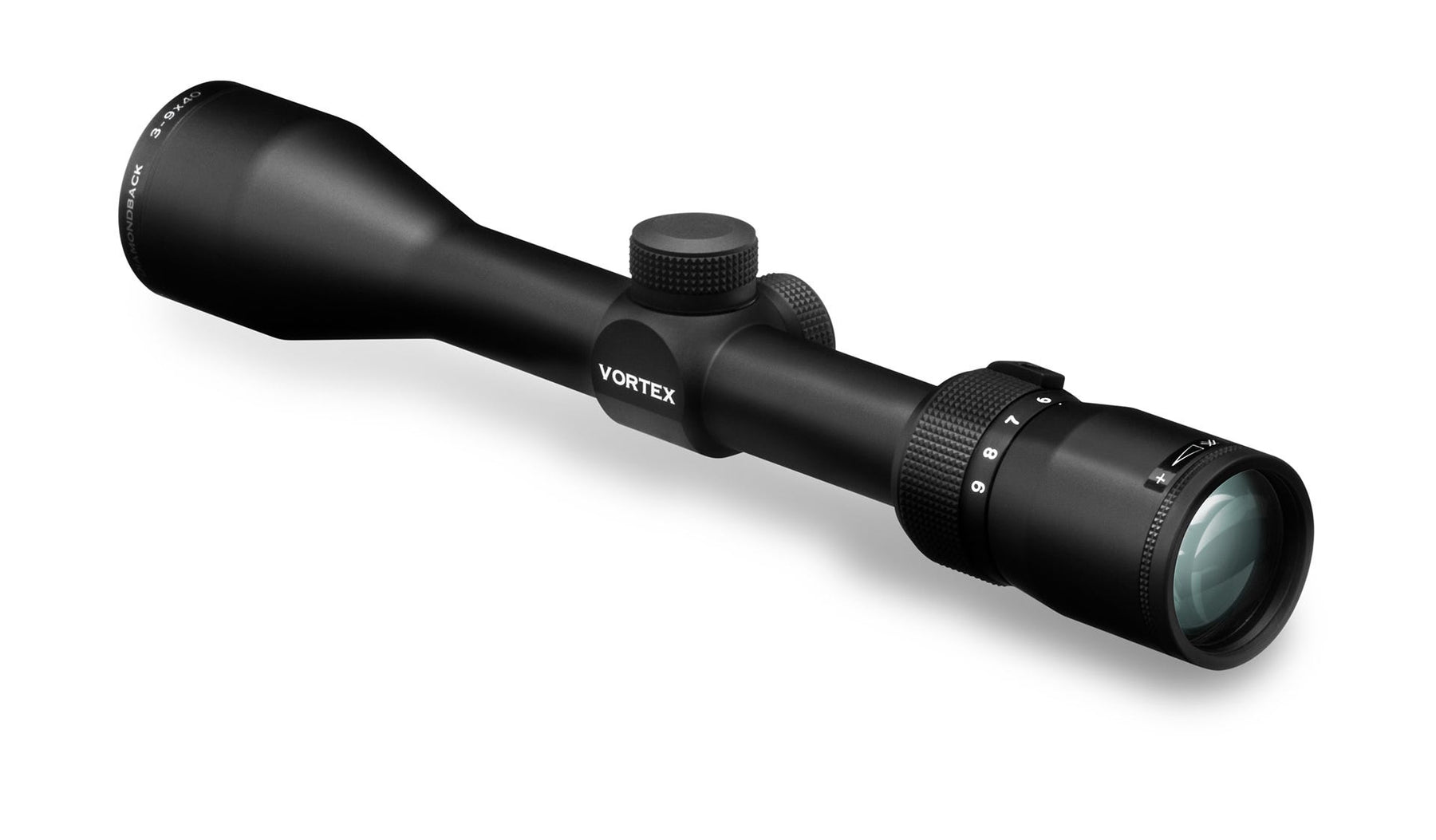

The Diamondback riflescope completely changes the rules when it comes to “you get what you pay for”. The performance-to-price ratio on this classic scope is off the charts when it comes to image quality, build quality and overall feel of the turrets and the fast-focus eyepiece. If you’re in the market for a high-quality riflescope, look no further than the Diamondback—a quality riflescope that offers a variety of configurations at a price that will leave you with plenty of money
Key Features:
Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.

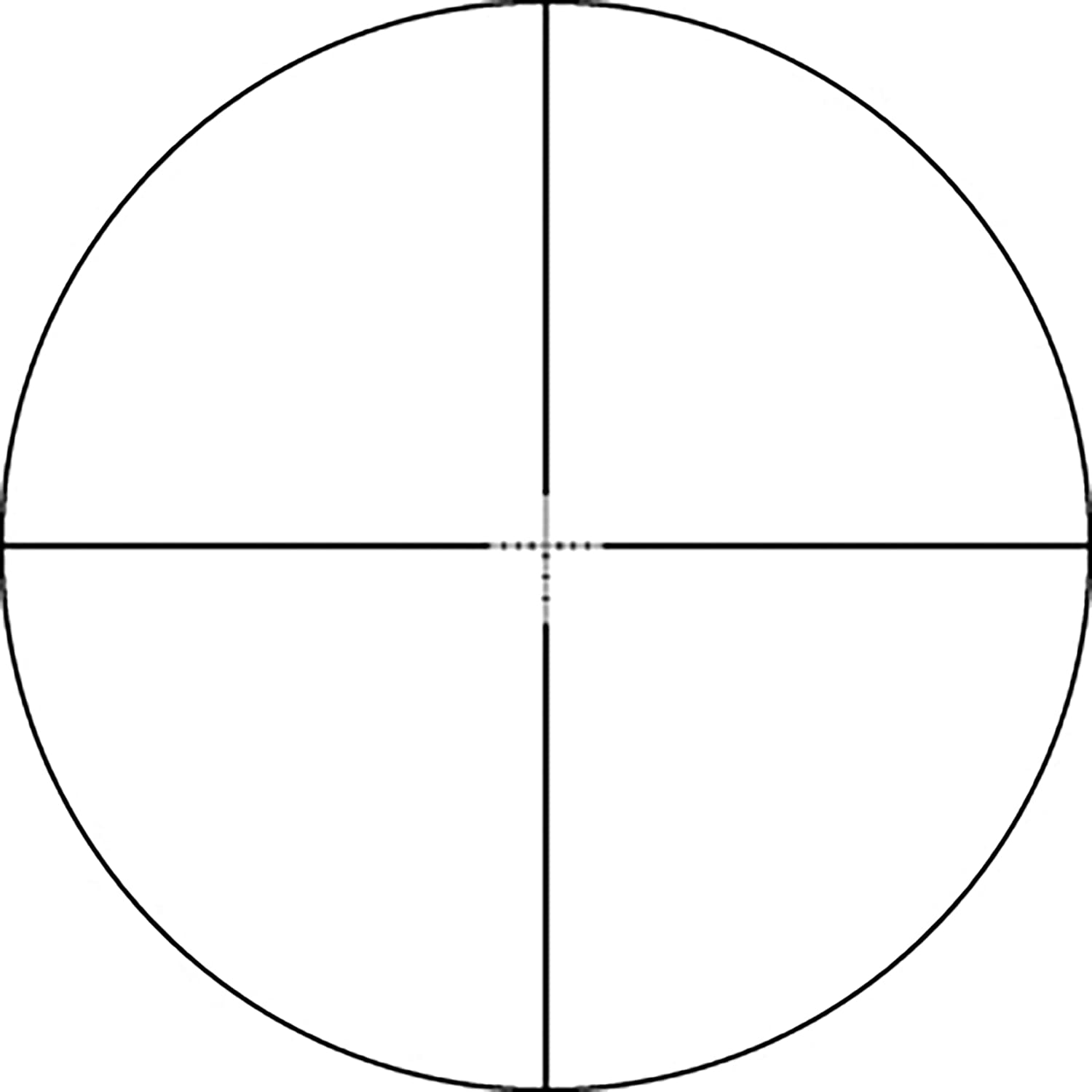

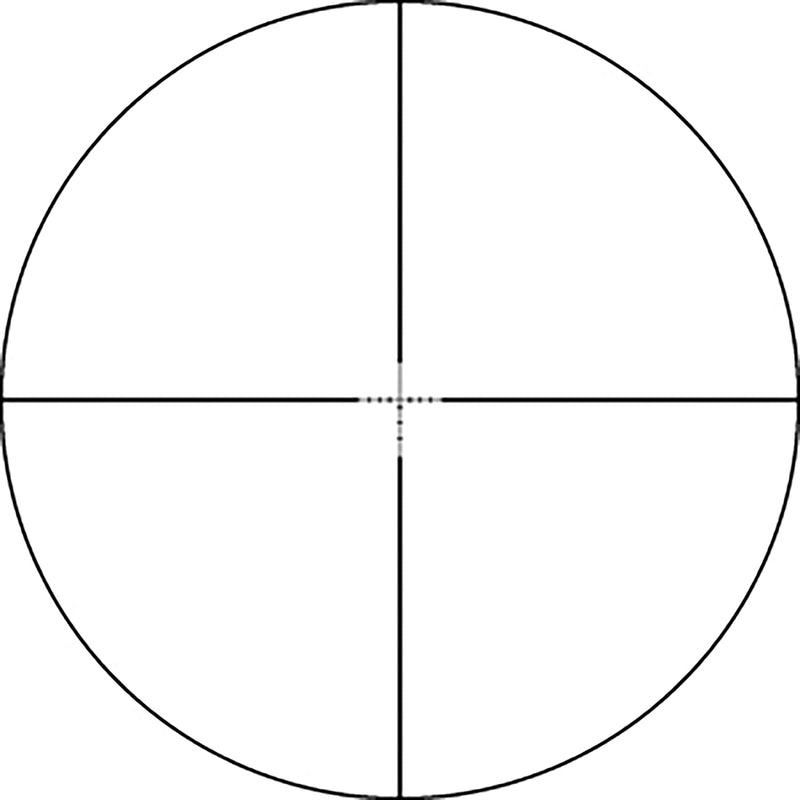

Second Focal Plane Reticle
Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.
Single-Piece Tube
Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
Aircraft-Grade Aluminum
Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Waterproof
O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.
Fogproof
Argon gas purging prevents internal fogging over a wide range of temperatures.
Shockproof
Highly durable hard-coat anodization provides a low-glare matte surface.
Capped Reset Turrets
Allow quick re-indexing of the turret (no tool needed) to zero after sighting in the riflescope. Caps provide external protection for turret.
Precision-Glide Erector System
This system ensures the components in the zoom lens mechanism glide smoothly and cleanly through all magnification ranges.
Fast Focus Eyepiece
Allows quick and easy reticle focusing.
Key Features:
- Fully Multi-Coated
- Second Focal Plane Reticle
- Single-Piece Tube
- Aircraft-Grade Aluminum
- Hard Anodized Finish
- Waterproof
- Fogproof
- Shockproof
- Capped Reset Turrets
- Precision-Glide Erector System
- Fast Focus Eyepiece

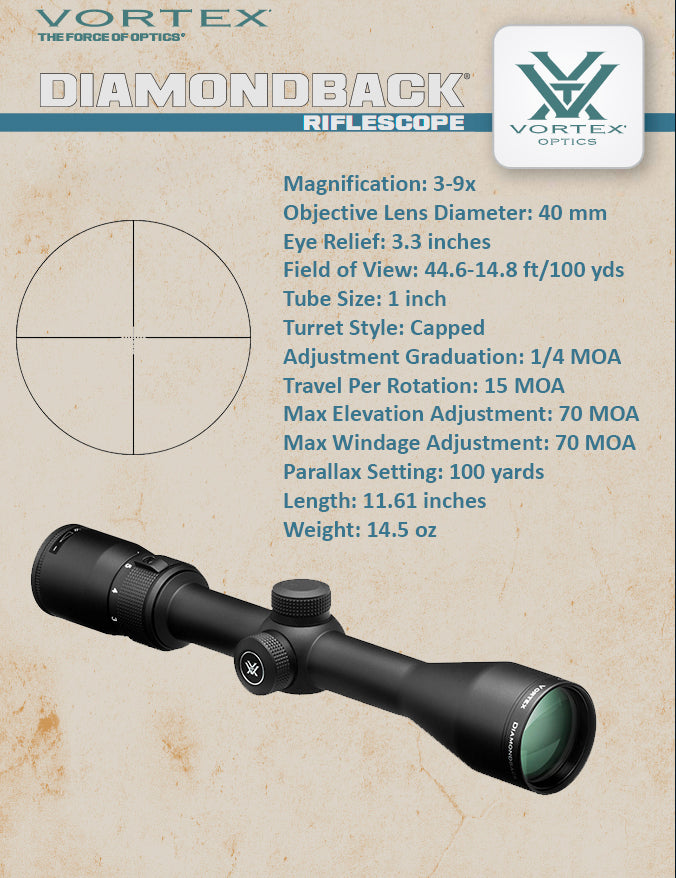

- Magnification 3-9x
- Objective Lens Diameter 40 mm
- Eye Relief 3.3 inches
- Field of View 44.6-14.8 ft/100 yds
- Tube Size 1 inch
- Turret Style Capped
- Adjustment Graduation 1/4 MOA
- Travel Per Rotation 15 MOA
- Max Elevation Adjustment 70 MOA
- Max Windage Adjustment 70 MOA
- Parallax Setting 100 yards
- Length 11.61 inches
- Weight 14.5 oz
