Vortex Optics Diamondback Second Focal Plane 1.75-5X32 Dead-Hold BDC (MOA) Reticle Riflescope with Vortex Optics Hunter Riflescope Rings, 1 inch - Medium

$229.99

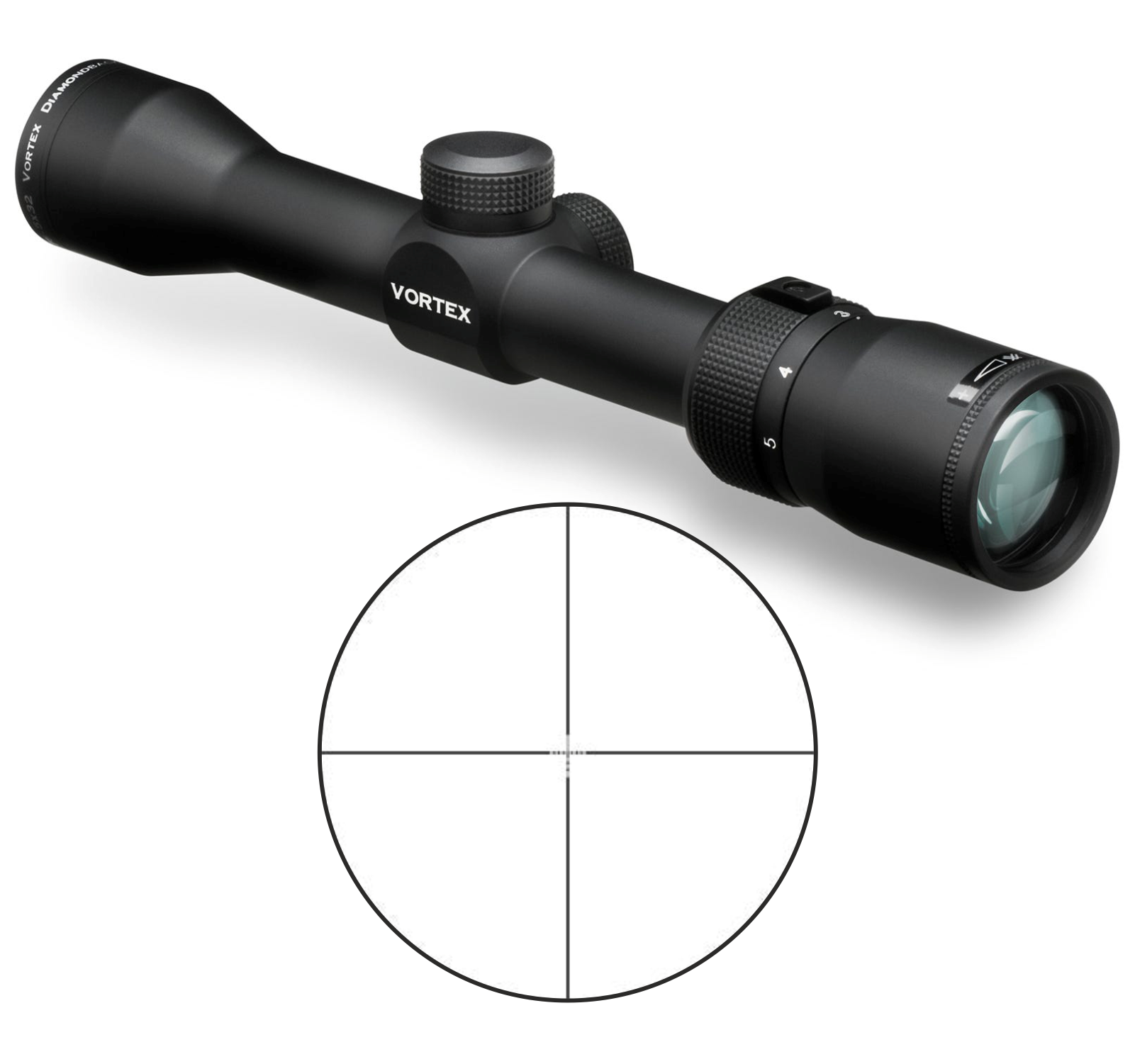

Vortex Optics Diamondback 1.75-5X32 Dead-Hold BDC (MOA) Reticle Riflescope

The Diamondback riflescope completely changes the rules when it comes to “you get what you pay for”. The performance-to-price ratio on this classic go-to hunting scope is off the charts when it comes to image quality, build quality and overall feel of the turrets and the fast-focus eyepiece. If you’re in the market for a high-quality riflescope, look no further than the Diamondback—a quality riflescope that offers a variety of configurations.

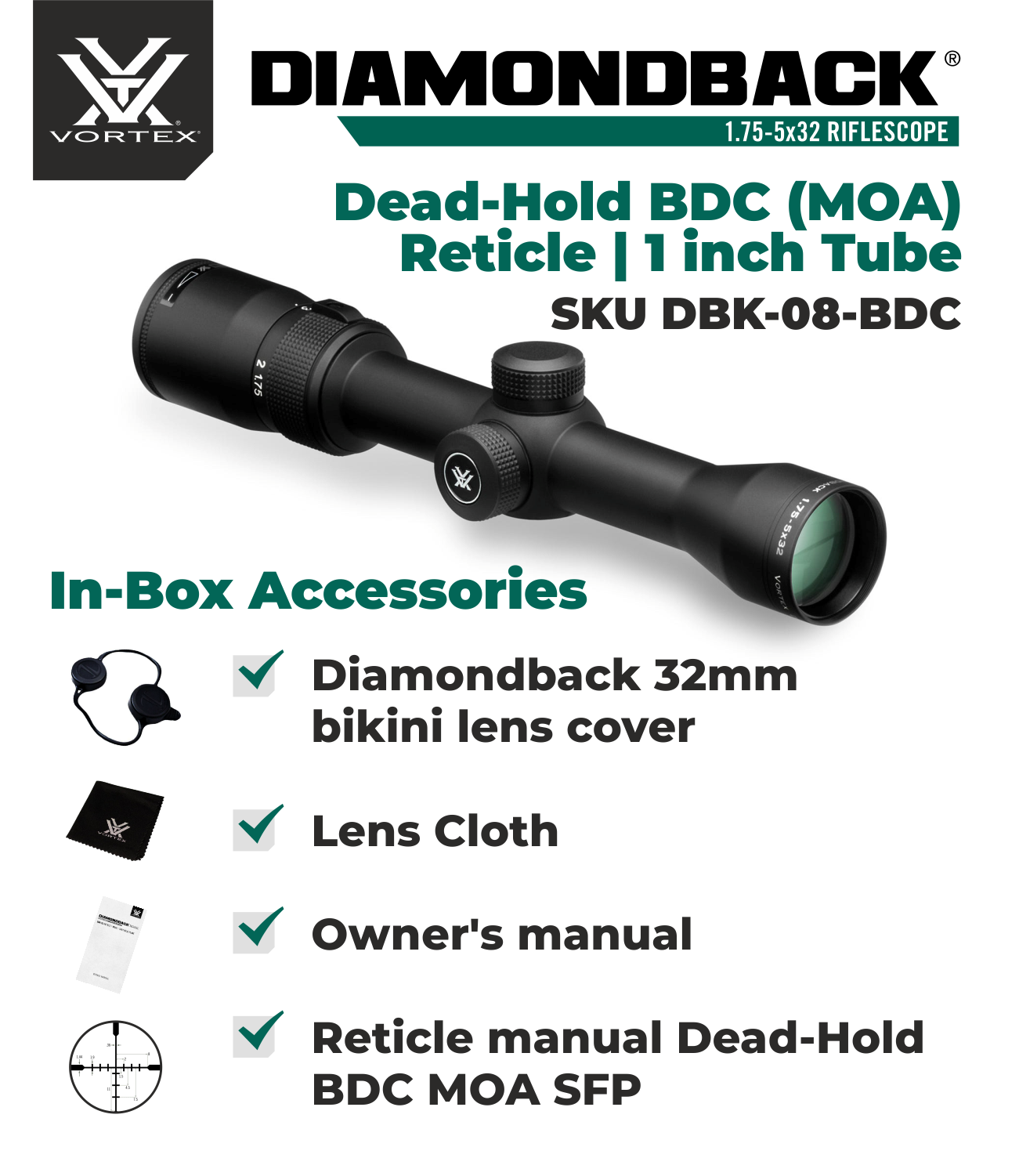

IN THE BOX

Removable lens covers
Lens cloth
1-inch Riflescope Ring, Medium Height (0.87 in)

Vortex Optics Diamondback 1.75-5X32 Dead-Hold BDC (MOA) Reticle Riflescope Specifications

Magnification	1.75-5X
Objective Lens Diameter	32 mm
Eye Relief	3.5 inches
Field of View	68.3-23.1 ft/100 yds
Tube Size	1 inch
Turret Style	Capped
Adjustment Graduation	1/4 MOA

Travel Per Rotation	15 MOA
Max Elevation Adjustment	125 MOA
Max Windage Adjustment	125 MOA
Parallax Setting	100 yards
Length	10.2 inches
Weight	12.8 oz

Dead-Hold BDC (MOA)

Customized hashmark design helps eliminate guesswork on holdover and windage corrections. Good for hunting/shooting at varying ranges where estimating holdover is a concern.


Fully Multi-Coated Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.	Second Focal Plane Reticle Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.	Tube size 1 inch diameter tube offers a versatile blend of adjustment, size and weight for a wide variety of shooting applications.	Single-Piece Tube Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.

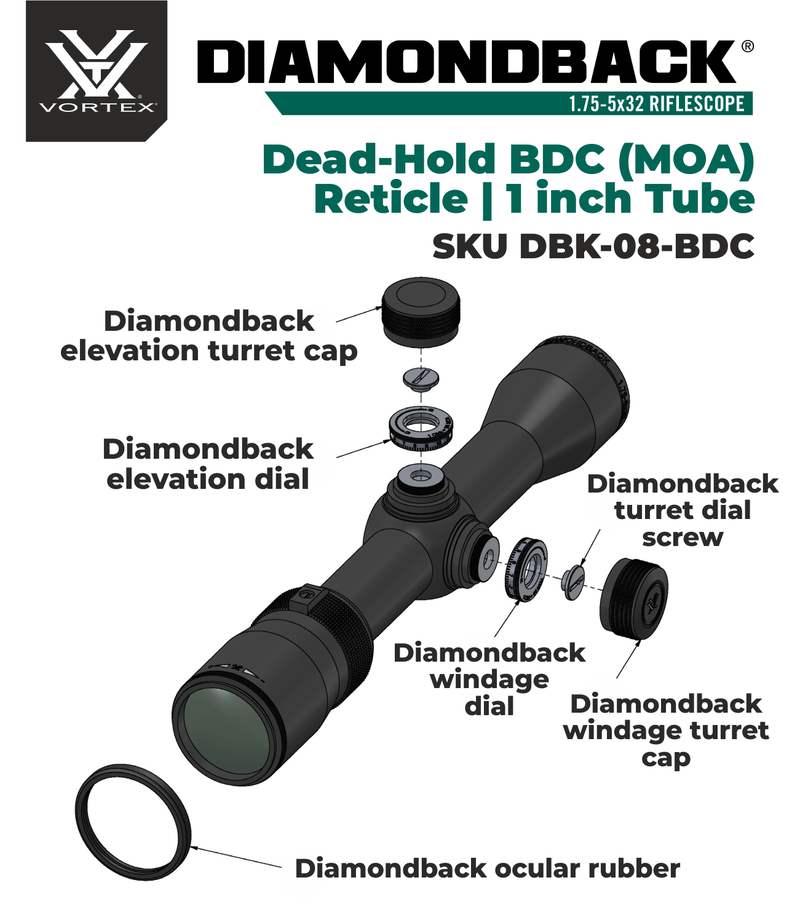

Waterproof O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.	Precision-Glide Erector System This system ensures the components in the zoom lens mechanism glide smoothly and cleanly through all magnification ranges.	Hard Anodized Finish Highly durable hard-coat anodization provides a low-glare matte surface and helps camouflage the shooter's position.	Capped Reset Turrets Allow quick re-indexing of the turret (no tool needed) to zero after sighting in the riflescope. Caps provide external protection for turret..

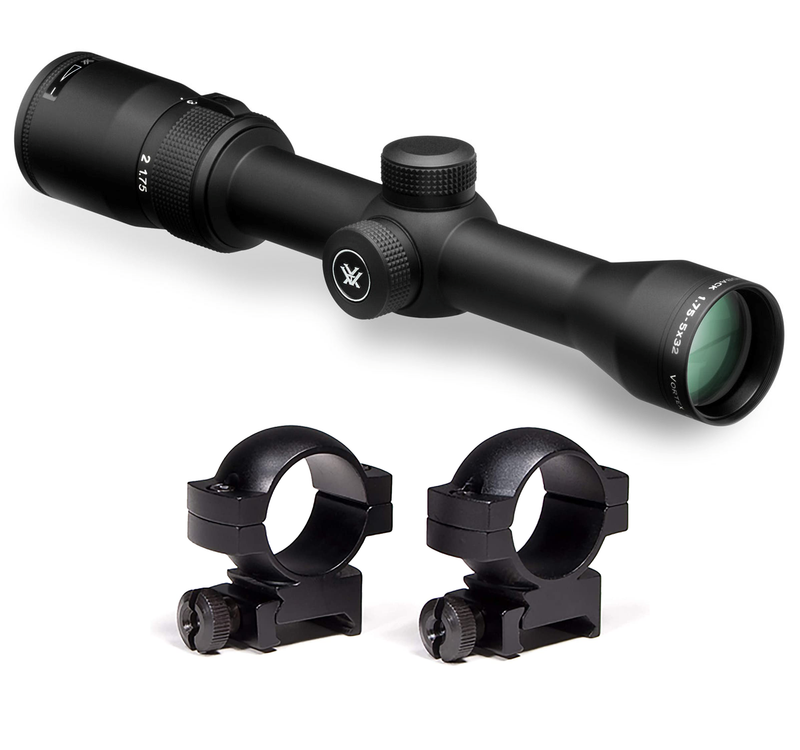

Vortex Optics Hunter Riflescope Ring, 1 inch - Medium

These Vortex Hunter Rings position the center of the riflescope tube at a height of 0.87 inches (22.0 mm) from the base.
Mounting to a Picatinny or Weaver type rail, the standard, 2-screw Hunter rings are a nice match for general hunting setups.
Made from aircraft-grade 6061-T6 aluminum for optimum strength.
Sold two rings per package.
Base Clamp Screws:25-30 in/lbs
