Sig Sauer BDX Combo Kit, KILO2400BDX Rangefinder - SIERRA3BDX 6.5-20x52mm Riflescope

$1,399.99

Headquartered in Newington, New Hampshire, SIG SAUER is a company with over 1,200 employees.

High quality, ultimate reliability and unmatched performance have always been hallmarks of the SIG SAUER brand.

SIG SAUER Electro-Optics transforms hunting with the unprecedented simplicity and accuracy of BDX

The BDX rangefinder and riflescope system is simple, fast, and intuitive. Simply download the 'SIG BDX' app available for Android or iOS smartphones, pair the KILO BDX rangefinder and SIERRA3BDX riflescope, set up a basic ballistic profile, and then you’re ready to shoot or hunt.

Download the SIG BDX app
Configure your bullet profile
Sync the app with your rangefinder
Press the Range button to measure the distance of your target
Use the app to bond the rangefinder with the riflescopeUse the app to bond the rangefinder with the riflescope
Once the riflescope is turned on, range the target and the new hold is lit up out to 800 yards

Electro-Optics Technology


AMR Ranging technology uses an on-board inclinometer that reads incline/decline angle and modifies the effective ballistic shooting range to the target. AMR is the equivalent horizontal range and integrates perfectly when used in combination with SIG Ballistic Turret Dials.	Lightwave DSP Lightwave DSP (Digital Signal Processing) engine leverages HyperScan – an advanced power management technique that provides fast refresh rate in scan mode (4 times per second) even at distances over a mile. Our DSP engine uses the latest generation Field Programmable Gate Array (FPGA) running sophisticated signal processing algorithms to reduce false positives while finding weak or distant targets.	LUMATIC An advanced display on the market. Our OLED (Organic Light Emitting Diode) display has the largest dynamic range providing for high brightness in bright sunlight or snow conditions, yet will dim down to near nightvision levels at dusk and dawn.	Stealth ID Deflection armor trapezoidal surfacing breaks up the shape and visibility of the optic along with pistol slide serrations and grip checkering to add function to the form of all SIG SAUER electro-optics.

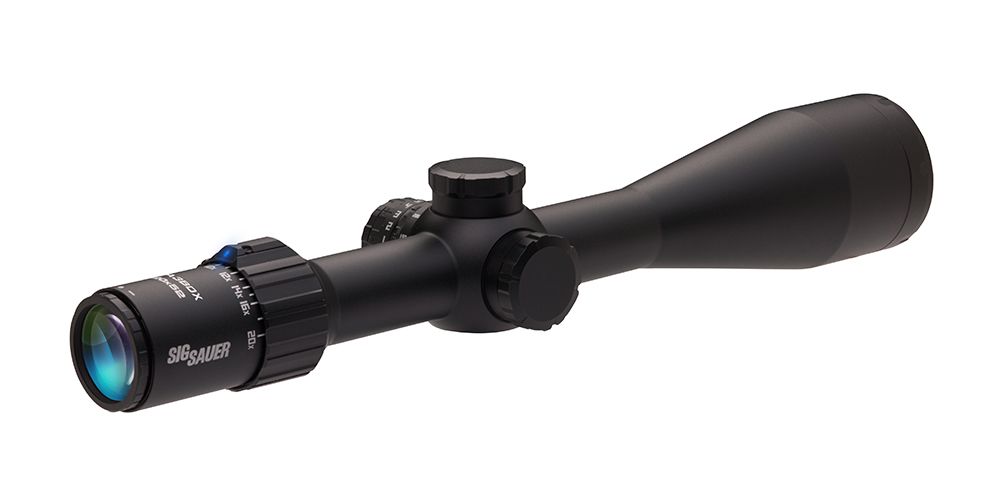

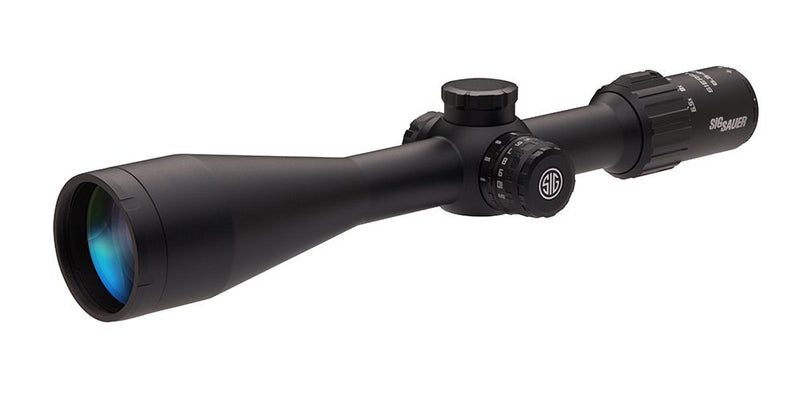

Sig Sauer Sierra3BDX 6.5-20x52mm MM Specifications

FOCAL PLANE	Second
RETICLE	BDX-R1 Digital
ADJUSTMENT INCREMENTS	0.25 MOA
WEIGHT	25.9
MAINTUBE DIAMETER	30 mm
TRAVEL PER ROTATION	20 MOA
PARALLAX SETTING	50 yards and beyond
FIELD OF VIEW LOW(FT@100YARDS)	14.1

EYE RELIEF HIGH (IN)	3.43
EXIT PUPIL LOW (MM)	6.1
EXIT PUPIL HIGH (MM)	2.6
WATERPROOFING	IPX 7
OCULAR OUTER DIAMETER (IN)	1.61
OBJECTIVE OUTER DIAMETER (IN)	2.38
MAGNIFICATION	6.5-20x
BATTERY	(2) CR2032

Sig Sauer KILO2400BDX 7X25 MM Specifications

MAGNIFICATION	7x
OBJECTIVE LENS DIAMETER (MM)	25 mm
FIELD OF VIEW	6.78'
EYE RELIEF	15 mm
OVERALL LENGTH	4.0 in
HEIGHT	3.0 in
OVERALL WIDTH	1.3 in
WEIGHT	7.5 oz

LASER DIVERGENCE	1.4 MRAD
WATERPROOFING	IPX-4
BATTERY	(1) CR2
RUN TIME	4000 ranges
DIOPTER ADJUSTMENT RANGE	+/- 3
RETICLE	Circle + Milling Grid
DISPLAY TYPE	OLED
MAX REFLECTIVE	Up to 3400 y
