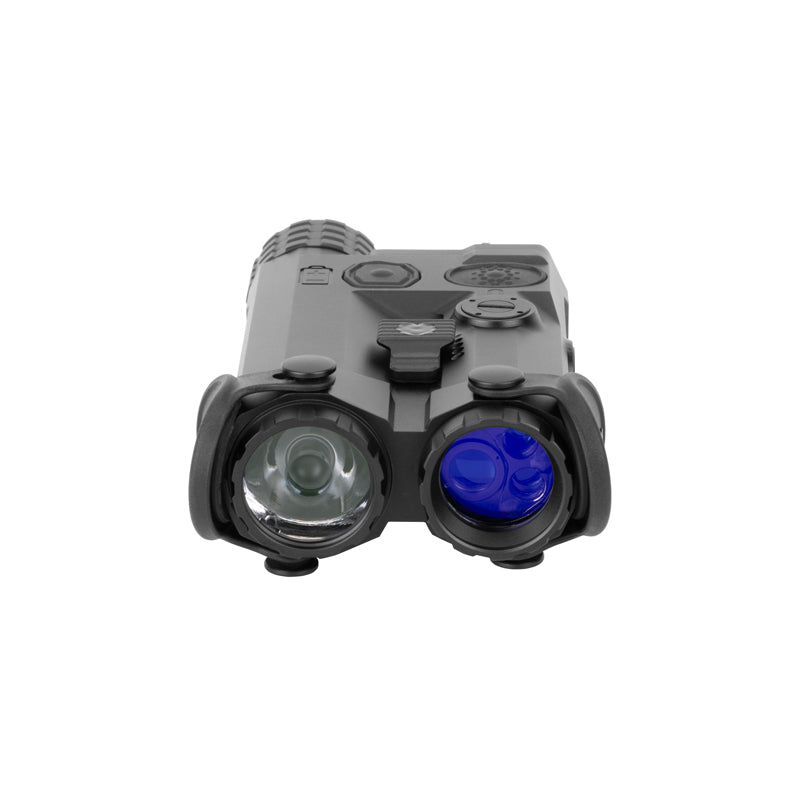

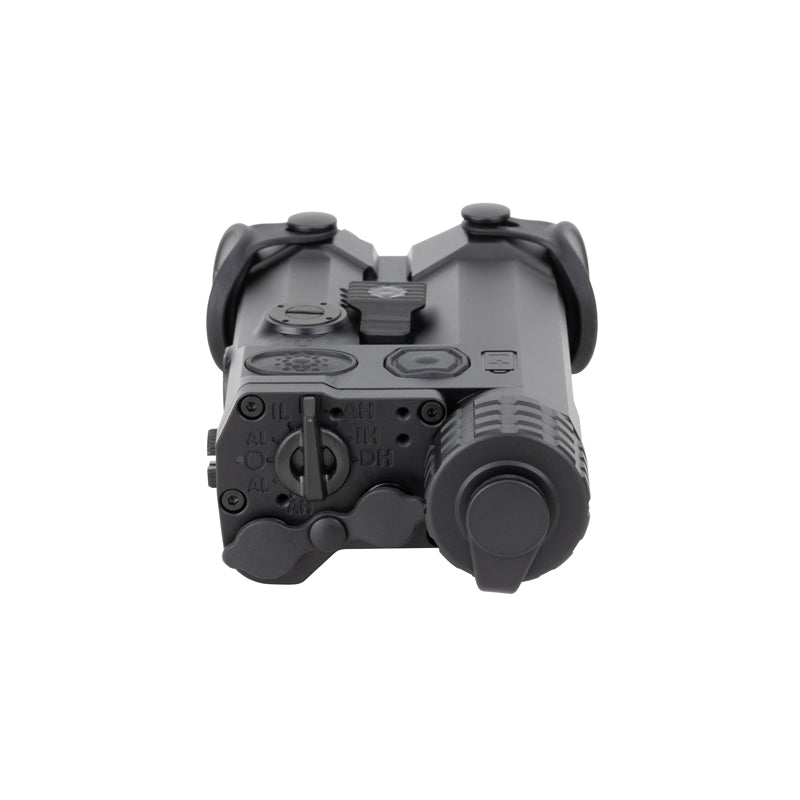

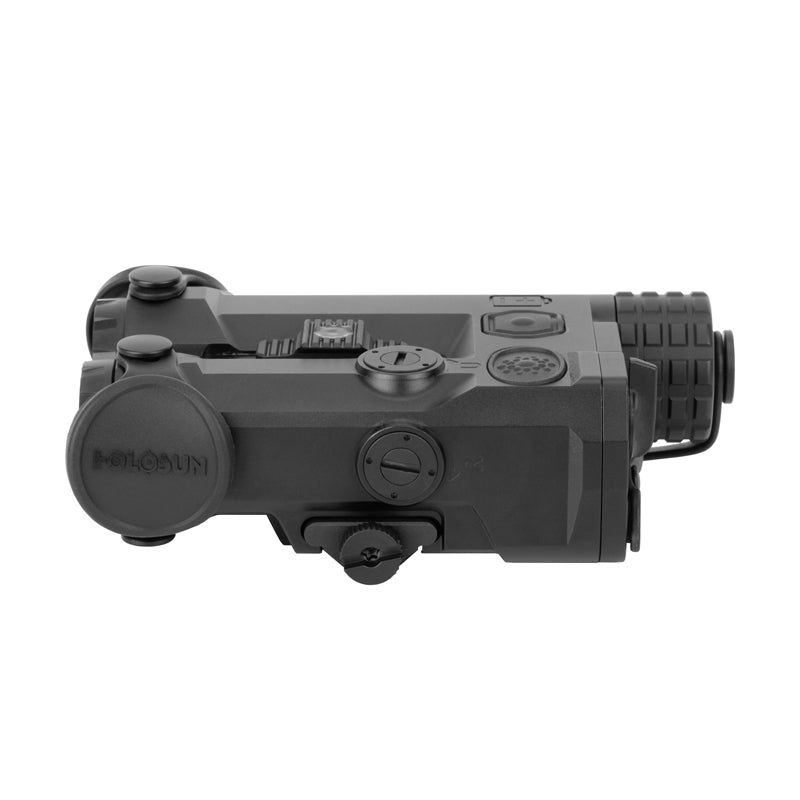

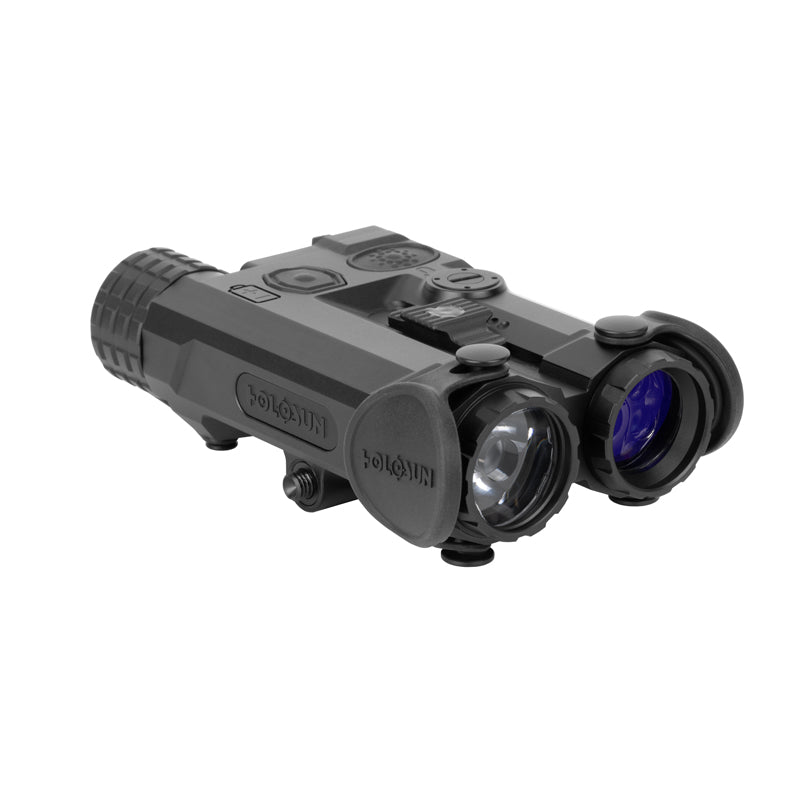

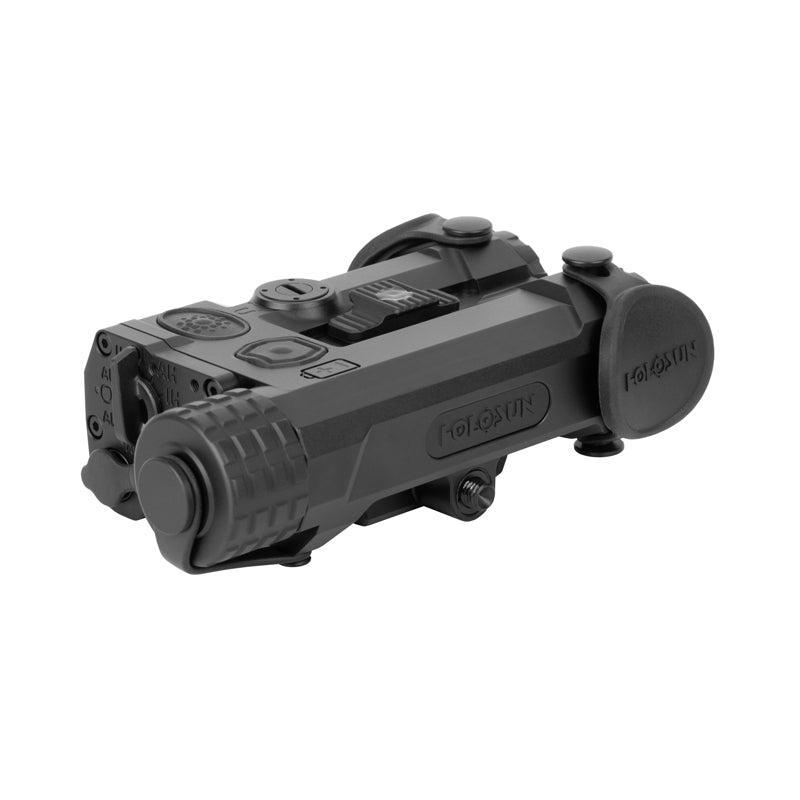

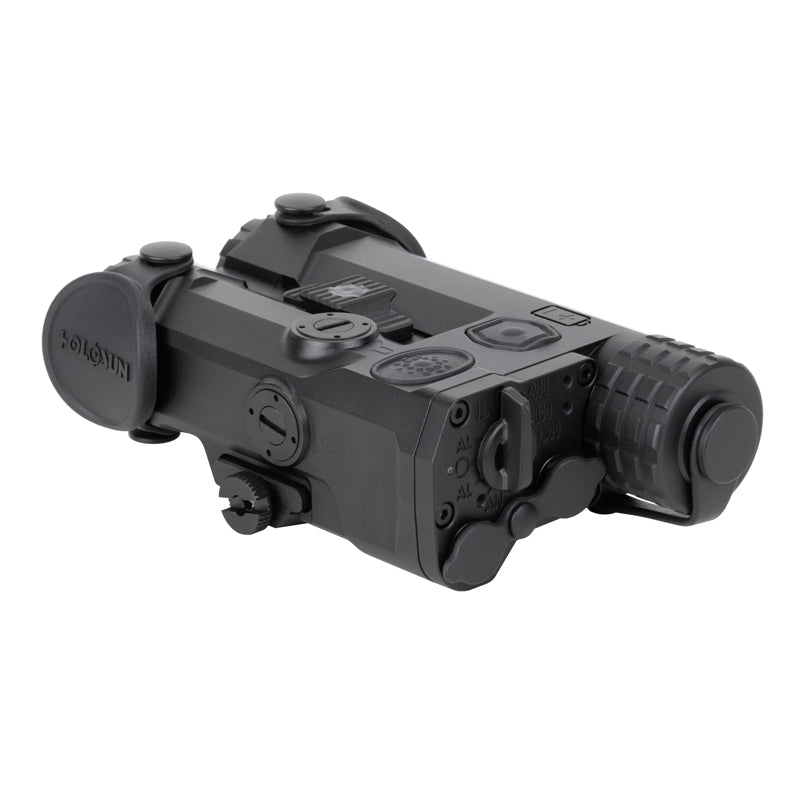

The Holosun IRIS-GR4 is a compact, advanced quad-function aiming and illumination system engineered to meet the demands of modern professionals and enthusiasts alike. Precision-machined from 7075-T6 aluminum, the redesigned housing is 43% lighter, 29% lower, and 28% narrower than the legacy LS420, offering superior ergonomics without compromising structural integrity. At its core, the IRIS-GR4 combines a co-aligned visible green laser, infrared (IR) aiming laser, 60mW VCSEL-based IR illuminator, and a high-output white light delivering 1,000 lumens and 25,000 candela. This integration allows operators to transition seamlessly between daylight aiming, night vision engagements, and high-intensity white light use. The co-alignment of the lasers simplifies zeroing—users can calibrate both IR and VIS lasers simultaneously using the visible laser in daylight conditions, ensuring consistent point-of-aim across environments. A key feature of the IRIS-GR4 is its top-mounted IR beam divergence slider, which enables on-the-fly adjustment of the IR illuminator's beam pattern from wide flood to tight spot—optimized for performance across a range of shooting needs. Dual independent fire buttons offer tactile, ambidextrous control of laser and light functions, while the updated rear-positioned power and mode selector provides streamlined controls. The included three-button remote switch connects via a Crane plug and offers a visible laser override function for rapid activation. For versatile power options, the IRIS-GR4 supports both the included USB-C rechargeable 18650 battery and dual CR123A batteries—providing dependable power in any operational setting.
Key Features:
- IR Illuminator: 60mW VCSEL
- IR Laser: 0.7mW VCSEL
- Green / Red Laser: 5mW
- LED Light: 1,000 Lumens / 25,000 Candela
- Battery Type: 2x CR123A / 18650
Holosun Dual Laser & Dual Illuminator Compact Advanced quad-function aiming and illumination System (IRIS-GR4) Specifications:
- Power Source: Battery
- Battery Type: 18650
- Battery Life (Hours): Up to modes
- Brightness Setting: Up to modes
- Dimension (in): 4.2×2.3×1.4
- Weight (oz): 8.5
- Housing Material: 7075 T6 Aluminum
- Surface Finish: Hard Anodize
- Adjustment per Click: 0.5 MOA
- W&E Travel Range: ±50 MOA
- Storage Temperature: -40℃~70℃
- Working Temperature: -30℃~60℃
- Submersion: IPX8
- Vibration: 1000G
- White LED Candela: 25000
- Laser & Illuminator Type: Dual Laser & Dual Illuminator
- White LED Output: 1000 Lumens
- IR Illuminator Class: Class 1
- IR Illuminator Output: VCSEL 60mW
- IR Pointer Class: Class 1
- IR Pointer Output: <0.7mw
- Visible Laser Class: 3R
- Visible Laser Output: <5mW
